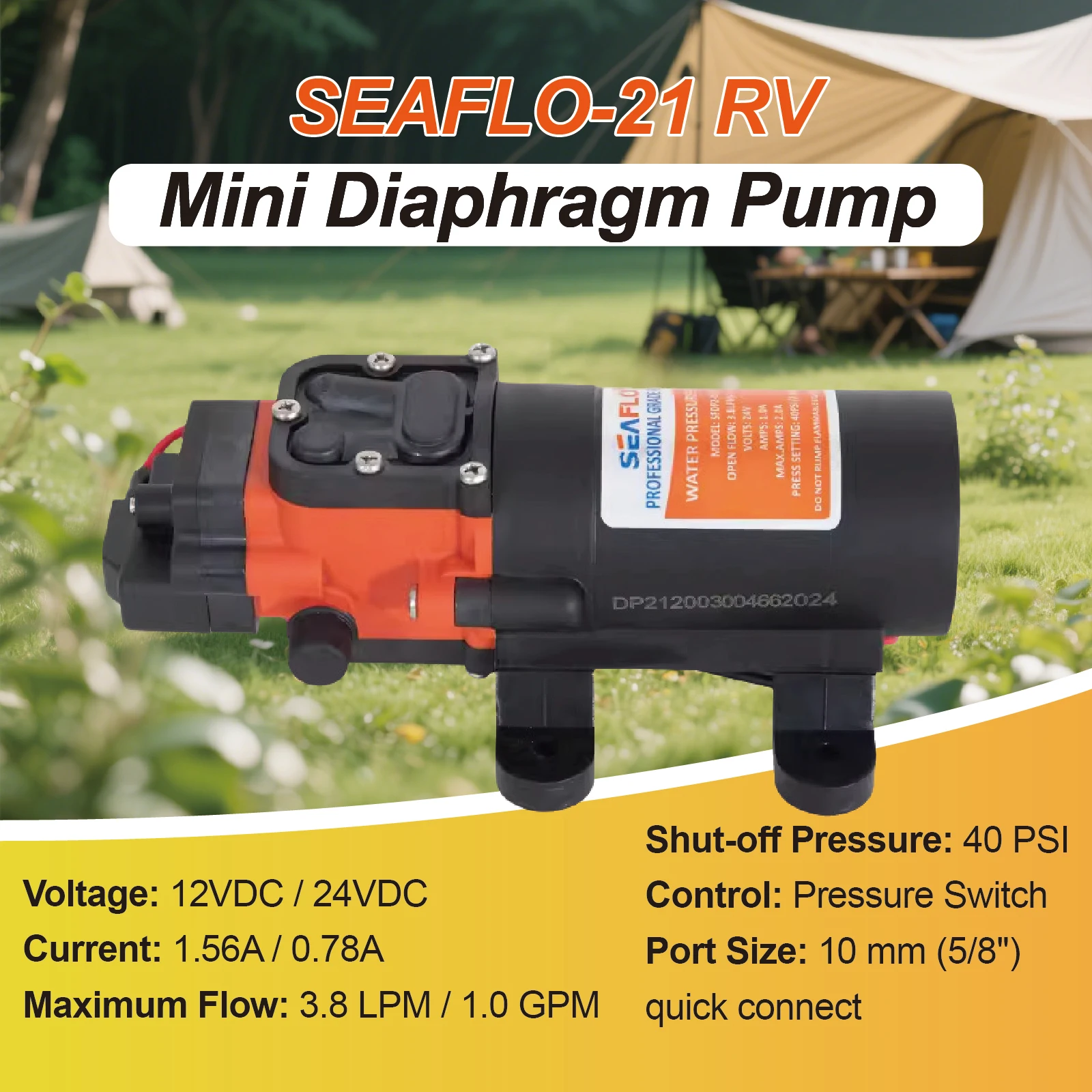

SEAFLO RV Mini Diaphragm Pump DC 12V 24V Water Purifier Booster Micro Self-Priming Car Pump Auto On/Off for Camping Vehicle

1.NOTE
Default Configuration:

Series: 21 Series
Rated Voltage: 12VDC / 24VDC (optional)
Rated Current: 1.56A (12VDC) / 0.78A (24VDC)
Maximum Flow Rate: 3.8 LPM (1.0 GPM)
Shut-off Pressure: 40 PSI
Control Mode: Automatic Pressure Switch
Port Size: 10mm diameter, 5/8" quick-connect

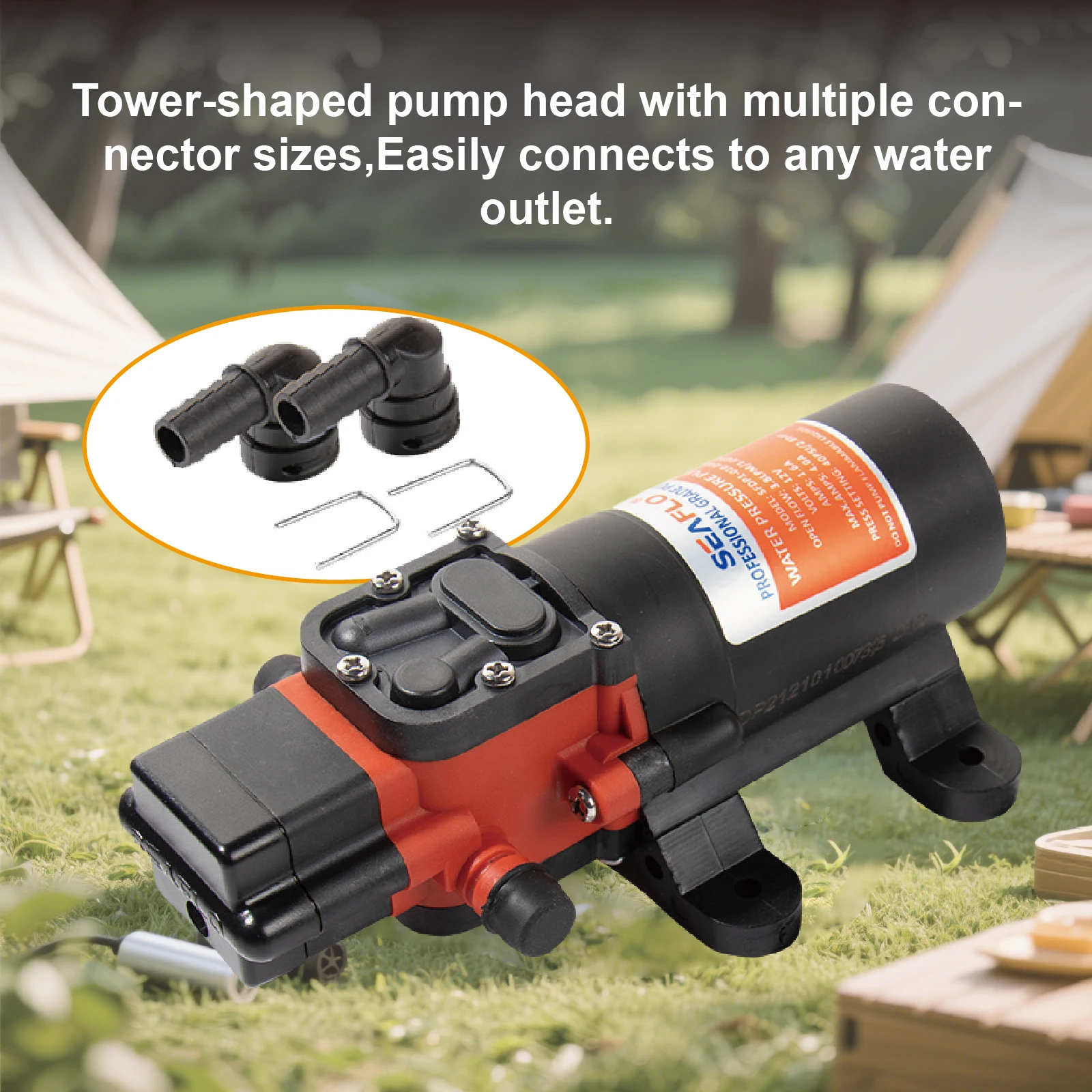

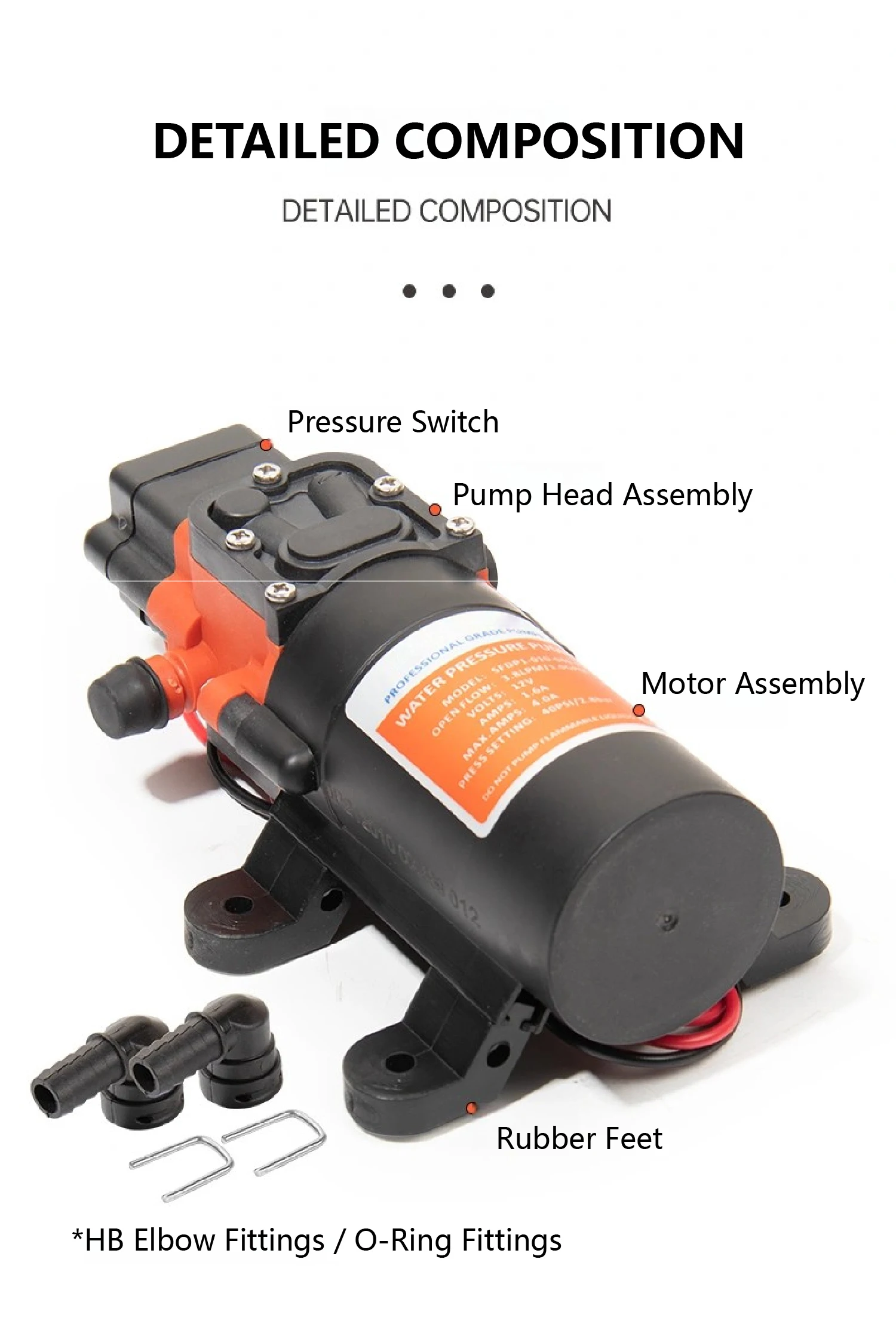

Fittings: HB elbow connector or O-ring connector available

For any inquiries, please feel free to contact us.

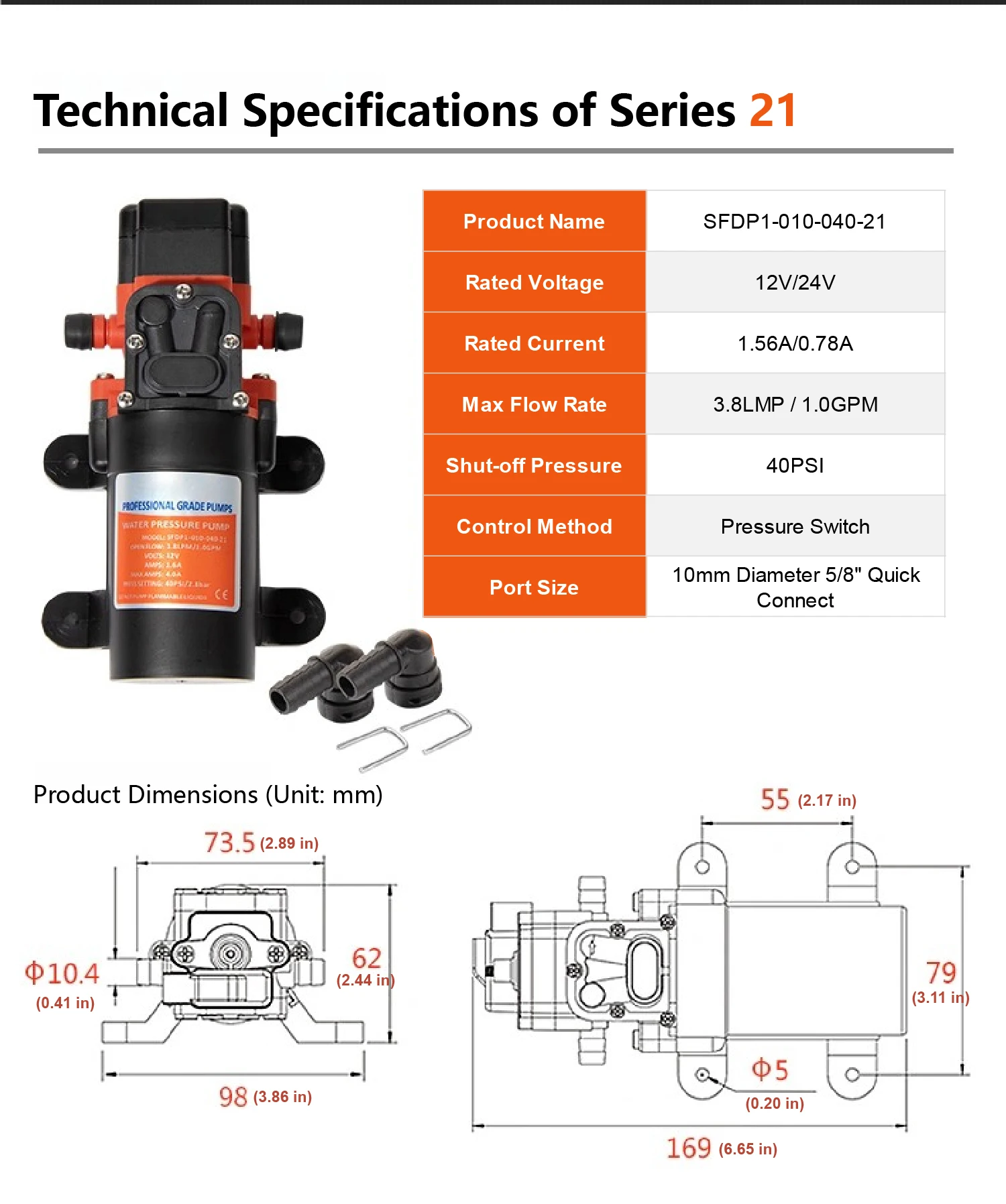

2. Parameters

3. Features

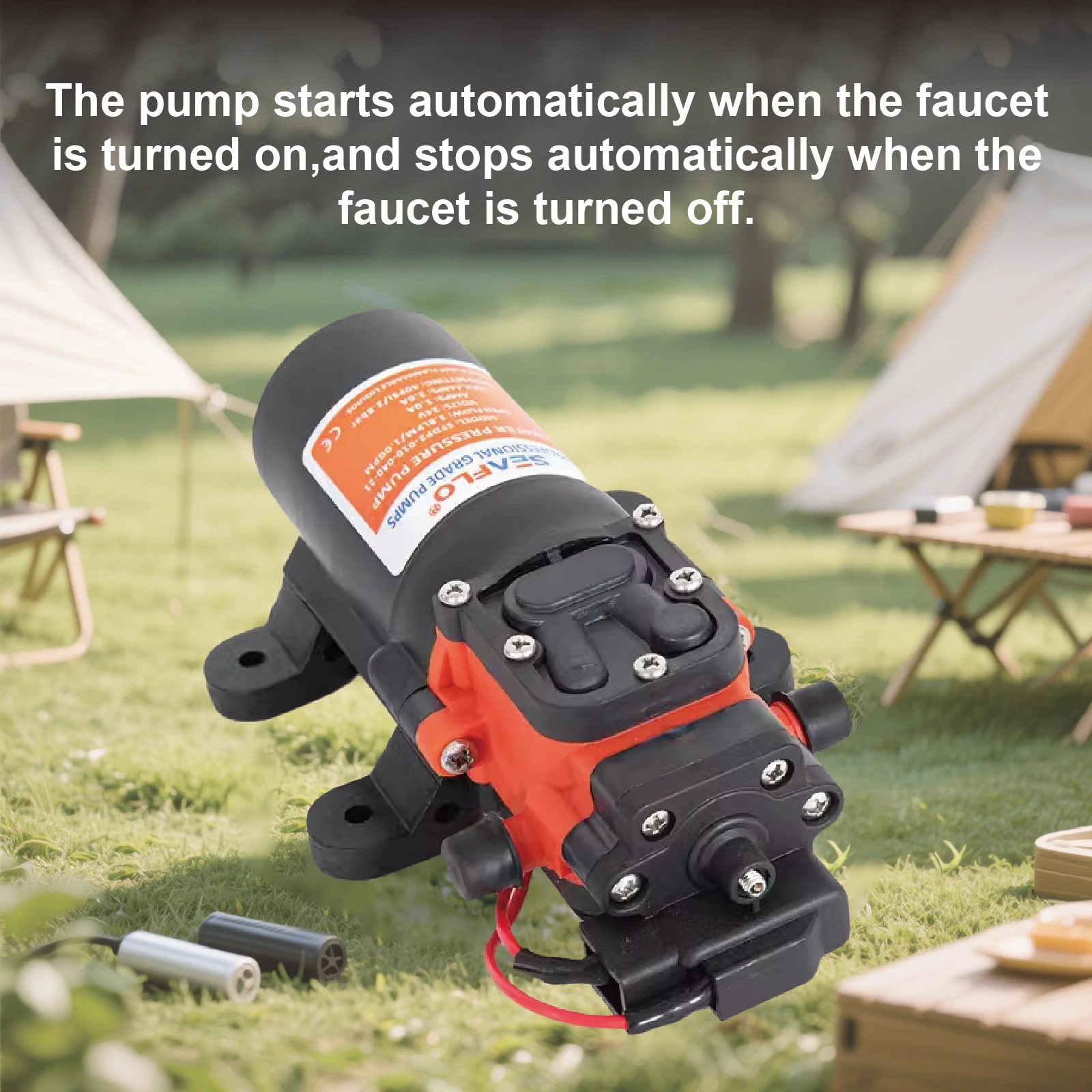

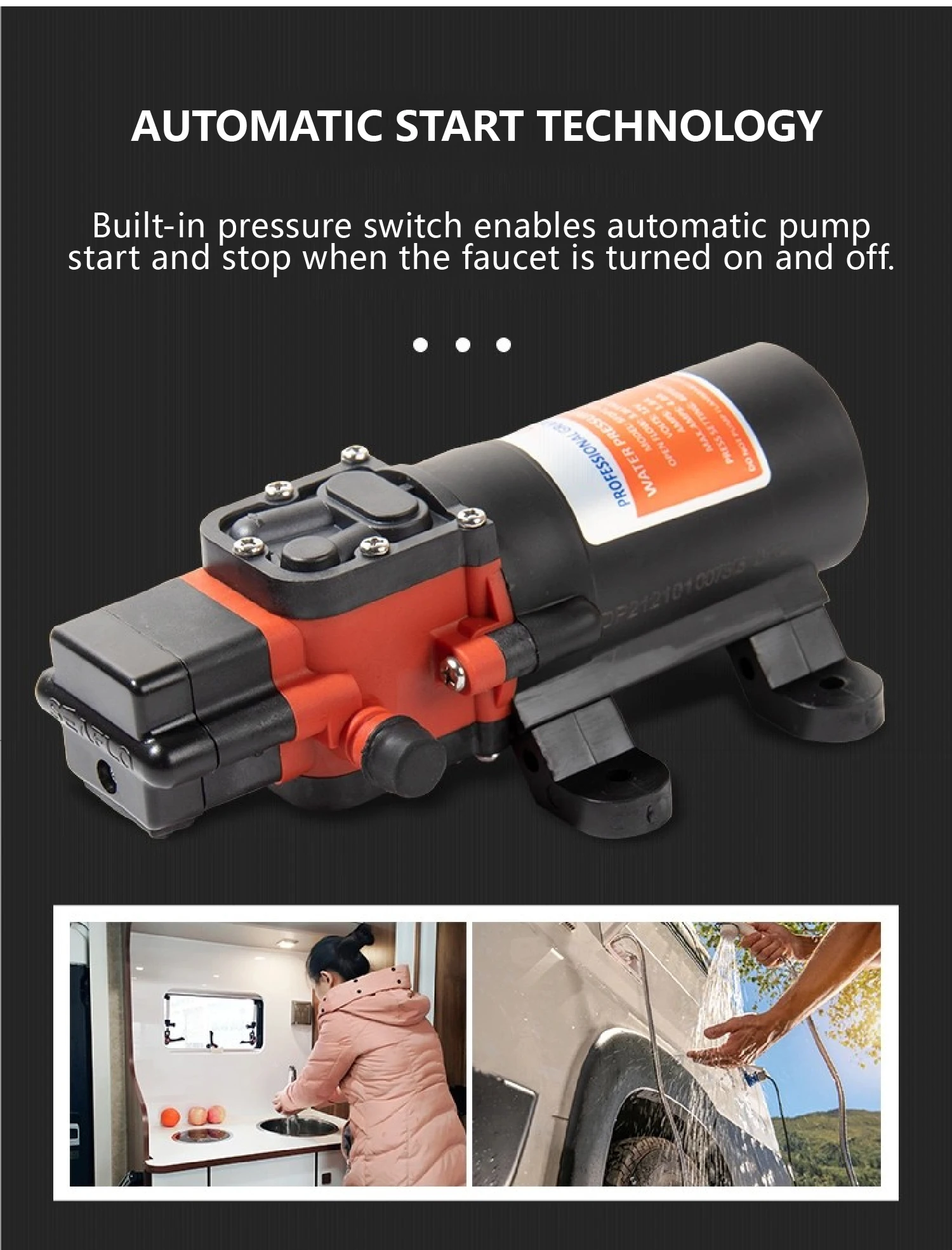

Automatic Start/Stop
The built-in pressure switch automatically activates the pump when the faucet is opened and shuts it off when closed, ensuring convenient and efficient operation.

Dry Running Protection
Engineered to withstand short periods of dry running without damage, offering enhanced safety and reliability.

Dual-Chamber Structure
Features a two-chamber diaphragm design for smoother performance and reduced vibration during operation.

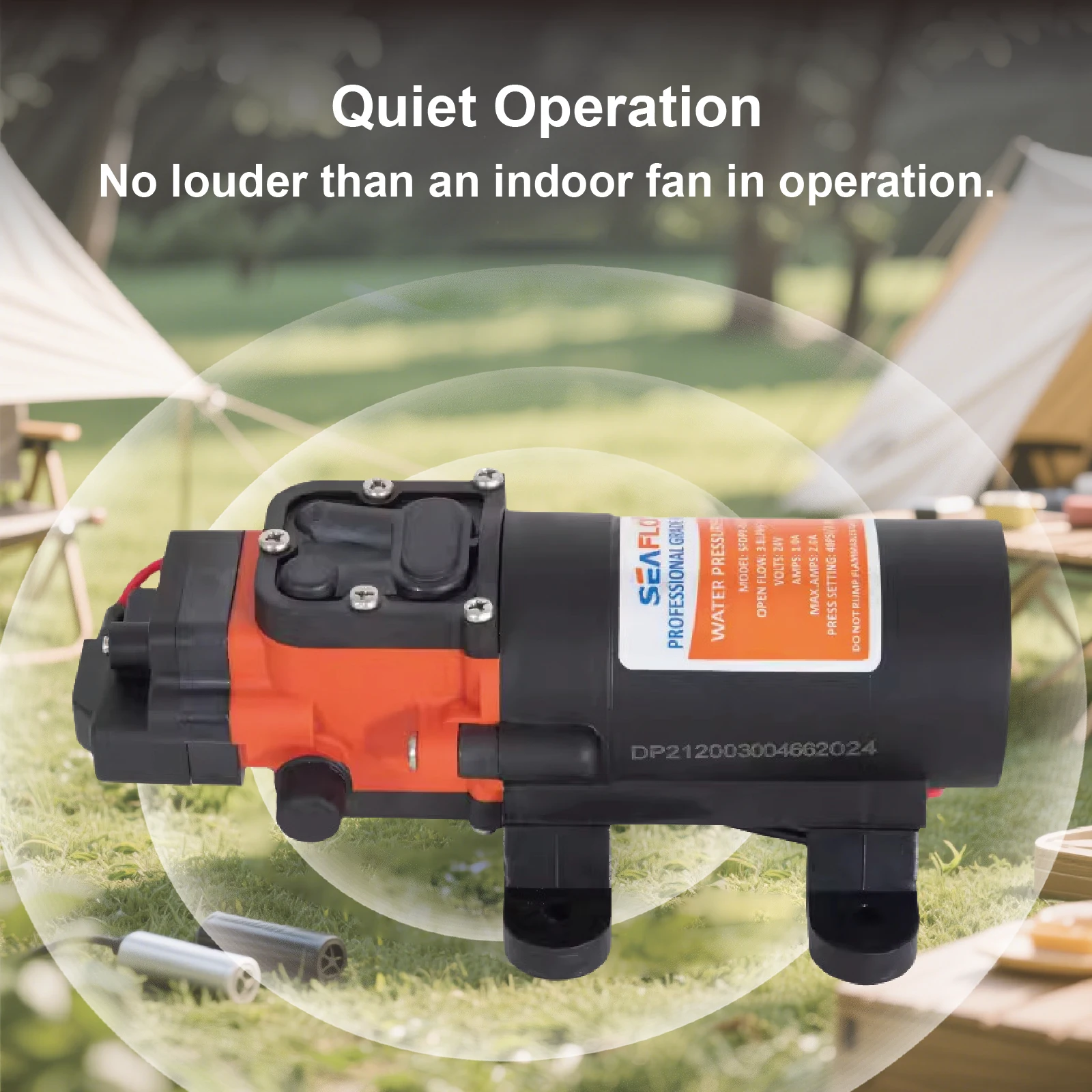

Quiet Operation

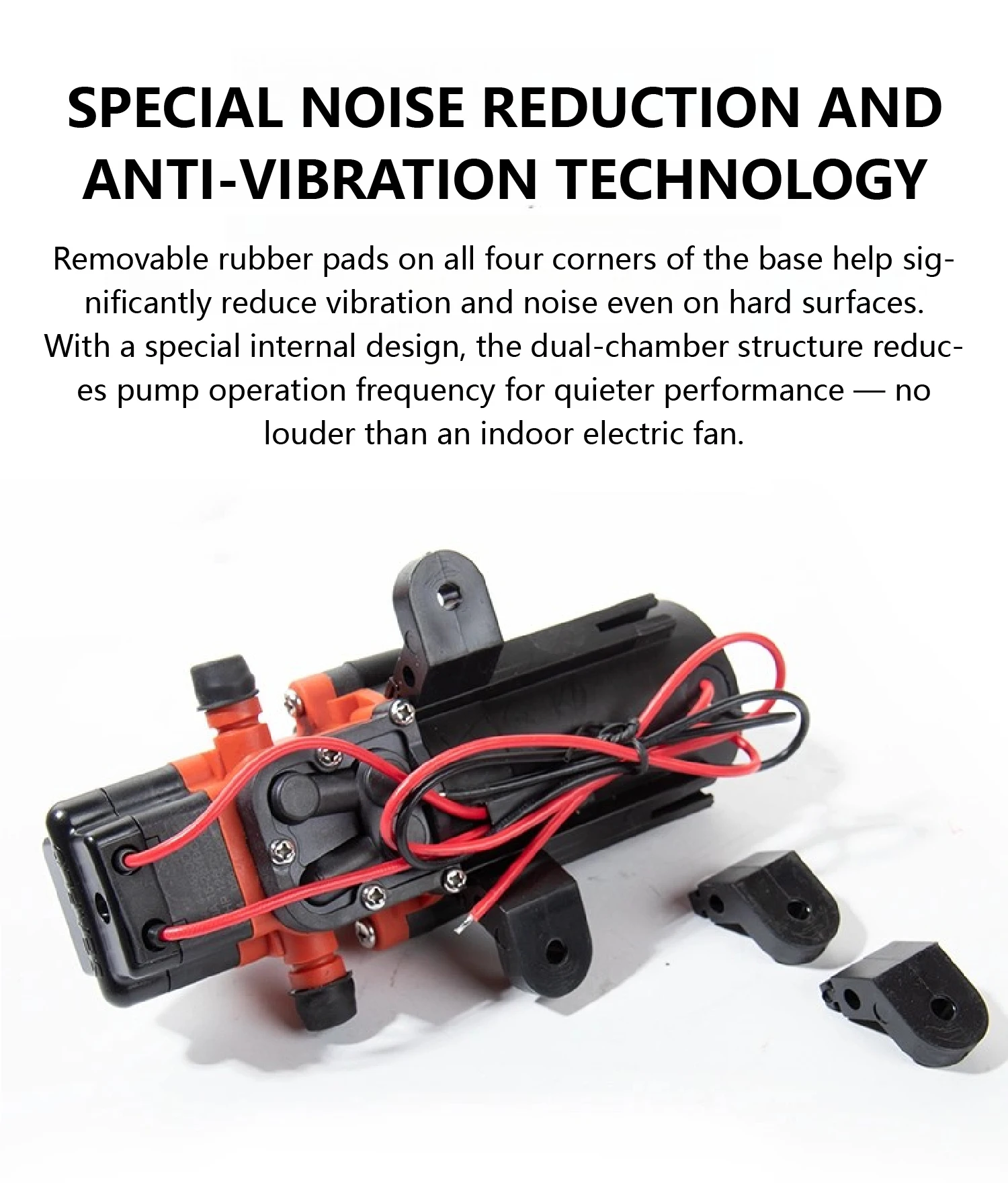

Equipped with anti-vibration rubber mounts that significantly lower noise levels, making it suitable for use even on hard surfaces.

Self-Priming Capability
Strong self-priming function enables fast and dependable startup, even when mounted above the water source.

Compact & Durable
Designed with a compact footprint and robust construction, ideal for RVs, marine use, and portable water systems.

4. Applications

Recreational vehicles (RVs)

Trailer and camper vans

Agricultural irrigation systems

Carbonated beverage dispensers

Bottled water dispensers

High-pressure cleaning machines

5. FAQs

Q1: Can this pump run dry without damage?
A1: Yes, it supports short-term dry running, but continuous dry operation is not recommended.

Q2: Is the pressure adjustable?
A2: Yes, the built-in pressure switch allows adjustment of the shut-off pressure.

Q3: Is this pump compatible with both 12V and 24V systems?
A3: Yes, this model is available in both 12V and 24V versions to suit different system needs.
