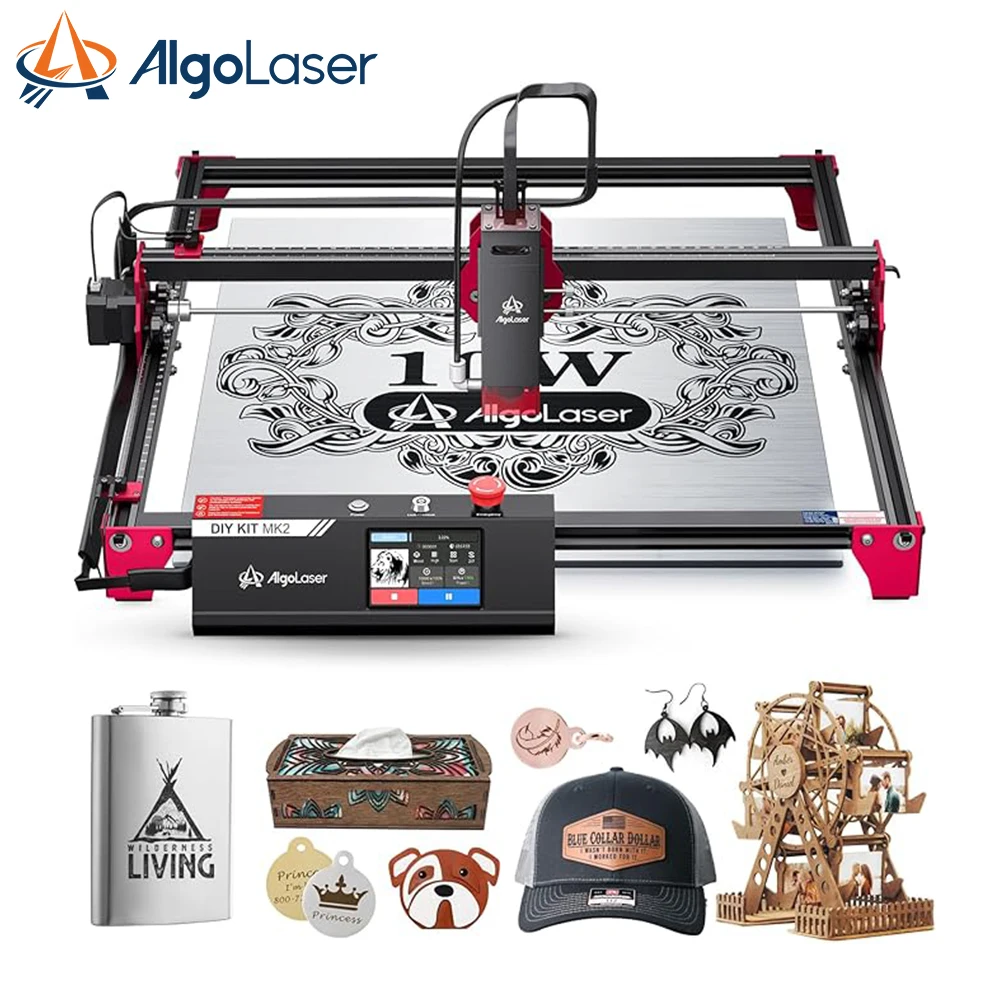

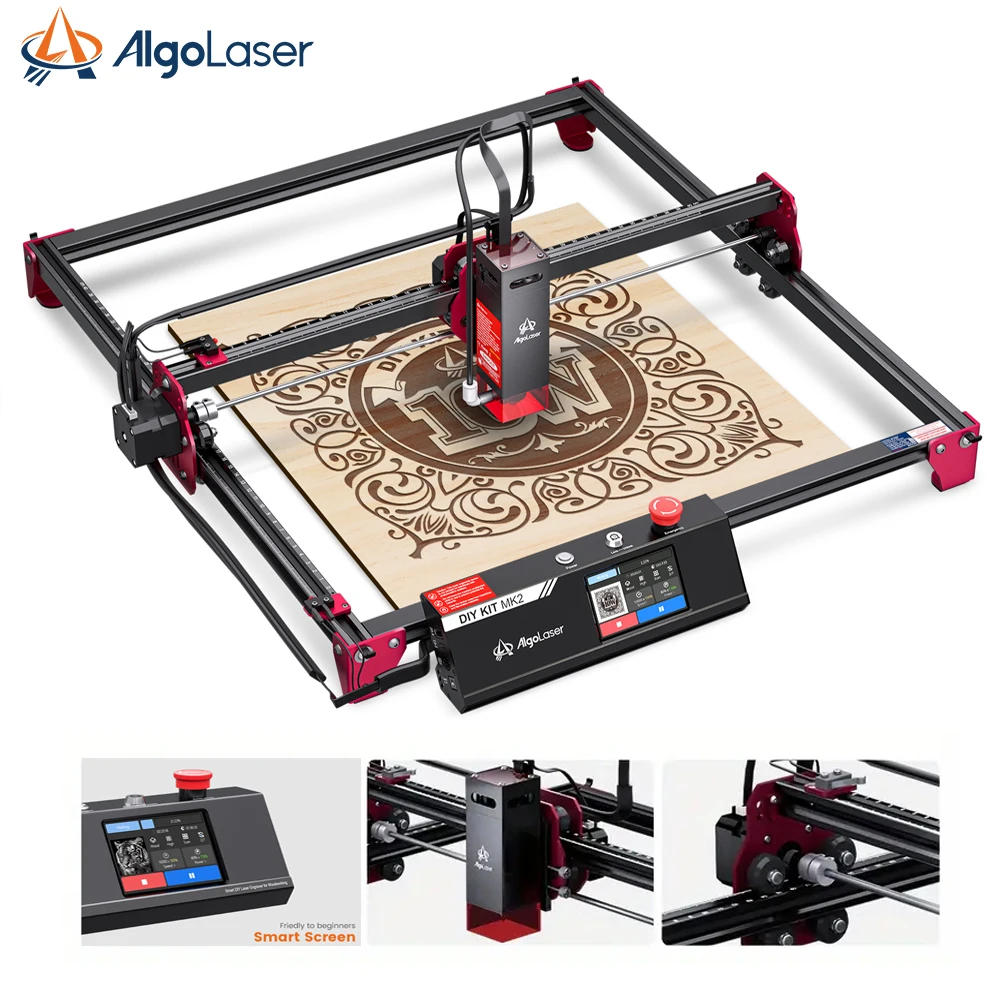

AlgoLaser Laser Engraving Machine DIY KIT MK2 10W High Precision Laser Spot Cutting Machine 3.5Inch Touch Screen Laser Engraver
- High-concerned chemical: None
- Engraving Area: 400x400mm
- Laser Power: 10w
- Is Smart Device: Yes
- Origin: Mainland China
- Brand Name: AlgoLaser
- Model Number: AlgoLaser DIY KIT MK2
- Working Area: 400x435mm
- Engraving Speed: Up to 12000mm/min
- Touch Screen: 3.5-inch IPS screen
- Luminous Power: 10W Laser Power
- Control Mode: PWM
- Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)
- Input Format: BMP, JPG, PNG, NC, DXF, SVG, etc.
- Warranty: One year's free warranty
Official AlgoLaser Laser Engraver 10W CNC Router Woodworking Tools with 3.5 inch Touch Screen DIY Laser Cutter for Custom Design

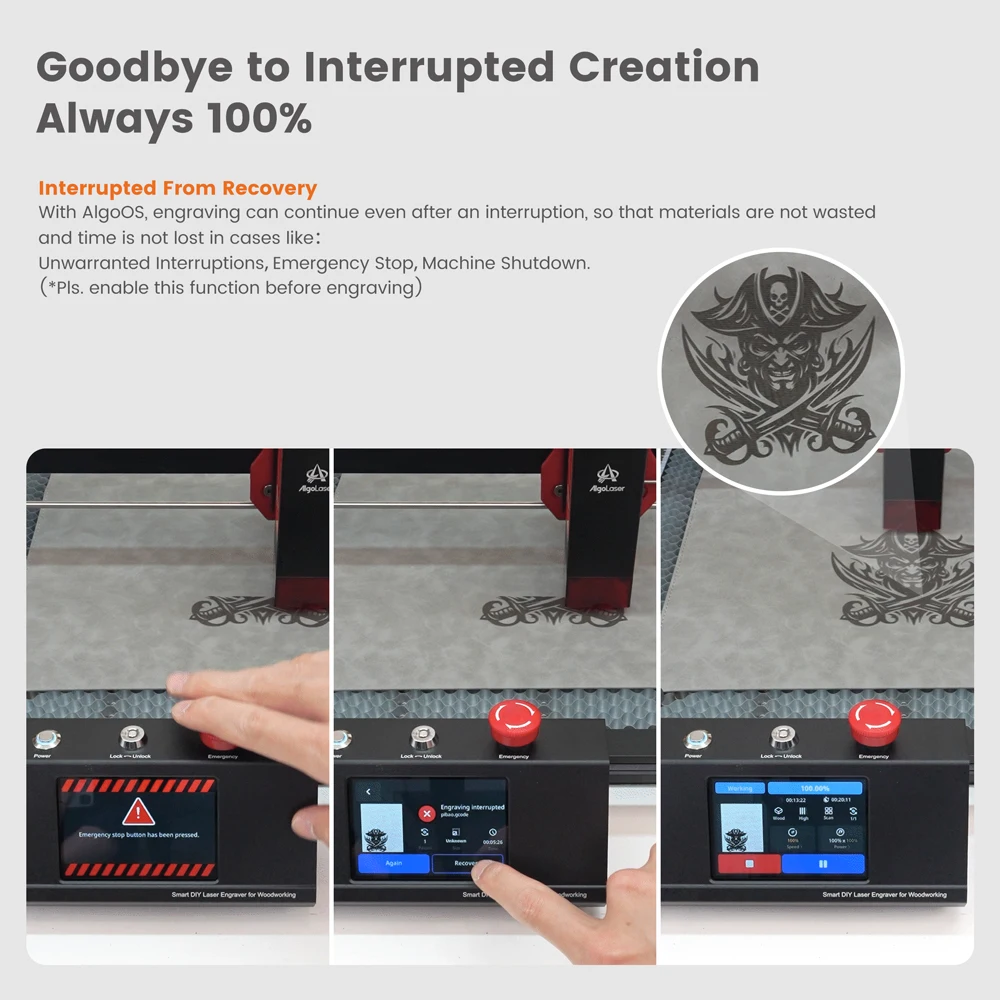

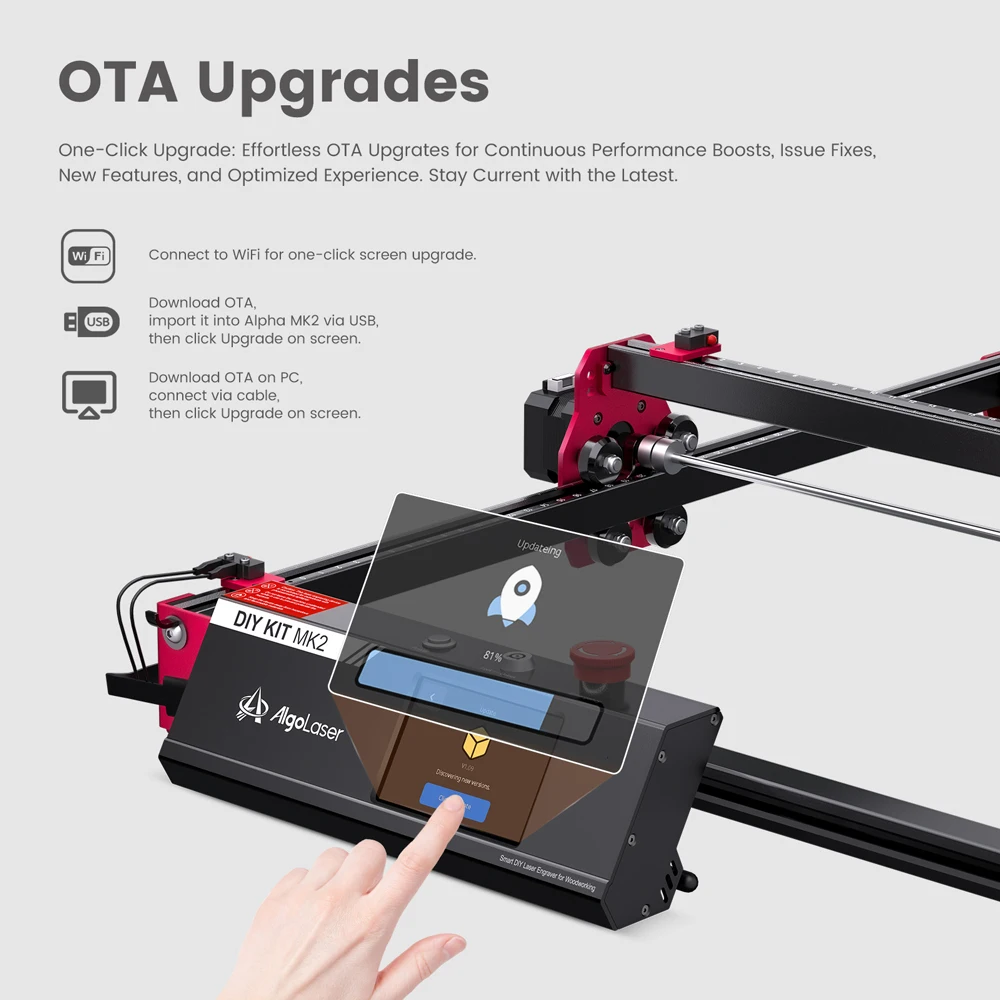

Latest AlgoOS, Improved System Performance -The upgraded AlgoOS system boosts performance and adds new features like AlgoSketch(drawing&writing), AlgoType(text input), reverse engraving, lock screen and newly upgraded UI design. It makes using the AlgoLaser easier, more flexible, and way more fun!
32-Bit Chipset & WIFI Connection -AlgoLaser DIY KIT MK2 is built with an ESP32 chipset and includes a WIFI connection for the engraver to router. This 32-bit chipset is running at 240MHz. That means it is faster and more powerful than comparably equipped machines with 8-bit chipsets. As an added bonus, the AlgoLaser DIY KIT MK2 supports WIFI connections through the web page or App to control engraving or cutting.
3.5” Colorful Touch Screen – Embedded the screen in the AlgoLaser DIY KIT MK2 laser engraver, it has a friendly user interface and friendly experience. It cut multiple pieces of plywood or images to be engraved without tying up your computer to run it. And support save the gcode file into TF card and engraving without computer connected.
Powerful Compatibility – AlgoLaser DIY KIT MK2 Supports offline connection via WiFi-2.4 GHz and TF card (built-in 8G); Supports wired connection via USB Type-A & Type-C; Supports USB stick connection (LaserGRBL/Lightburn software). It supports import with BMP, JPG, PNG, DXF, AI, SVG file format and so on.
Ultrafine Laser Point & Powerful Laser Module – Comes with the latest FAC laser technology for compressed laser point, 0.08 x 0.08mm point size, super concentrated energy can make carving or cutting more solid. The output power of the laser module reaches 10W.

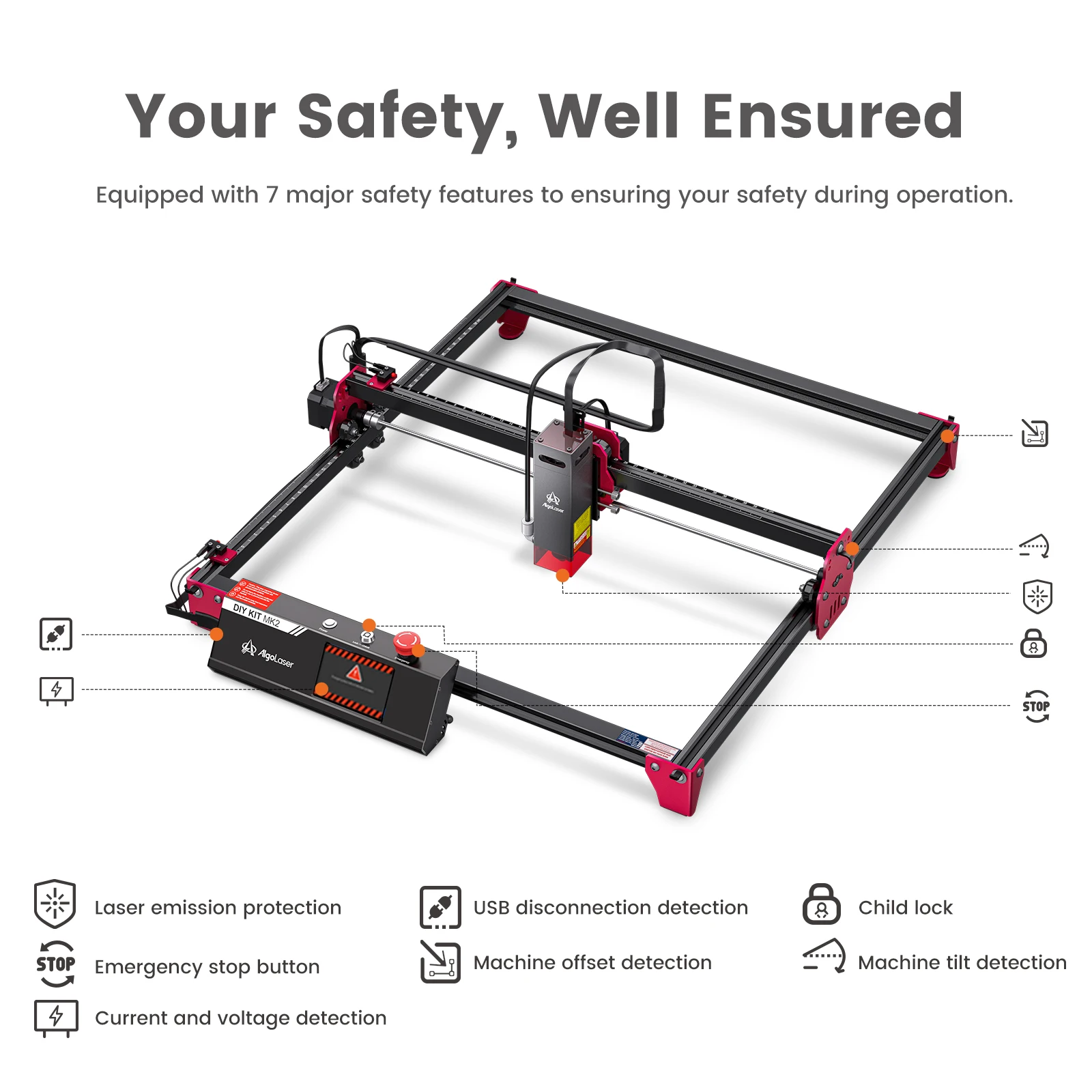

Move Protection & Thermal Protection & Eye Protecting – If the machine is moved while in use will initiate auto-shutdown for personal safety. Thermal protection initiates an auto-shutdown if it detects a flame or the engraving area overheats. An acrylic cover on the laser module, which can protect your eyes. It has extra Emergency Stop Button /Safety Lock safety functions than other brands.
Upgradable new features – Compatible with a wide range of algo smart accessories, it offers automatic and direct connectivity.
(Smart Hub; Manual/Electric Z-Axis; Honeycomb Board/Engraving Platform/Heightening Feet/ARR/ARC/Dustproof Box/Camera/Purifier)
Specification:
Model: AlgoLaser DIY KIT MK2
Laser Technology: Diode Fiber Laser
Working Area: 400x435mm
Laser Wavelength: 450nm
Focus Type: Fixed Focus -30mm Focal Range
Spot Size at Optimal Focus: 0.08×0.08mm
Optical Output Power: 10W
Z Axis-Height Range: Up to 65mm
Engraving/Cutting Speed:12000mm/min
Engraver Input: AC 110-240V
Software: LaserGRBL, compatible with LightBurn, APP
Connection: USB/TF Card / Wifi
Welcome to AlgoLaser Official Store, we dedicated to offering you laser engraving machines with Fast Delivery, Reliable Quality and Affordable Price. We have lots of inventory in Russian, Czech republic, Spain, United States, Brazil, Mexico and China warehouse, about 3-7 Business Days Fast & Free Shipping. And we are original AlgoLaser original manufacturer in Shenzhen, China, you could rely on us for the consistent quality and service!
