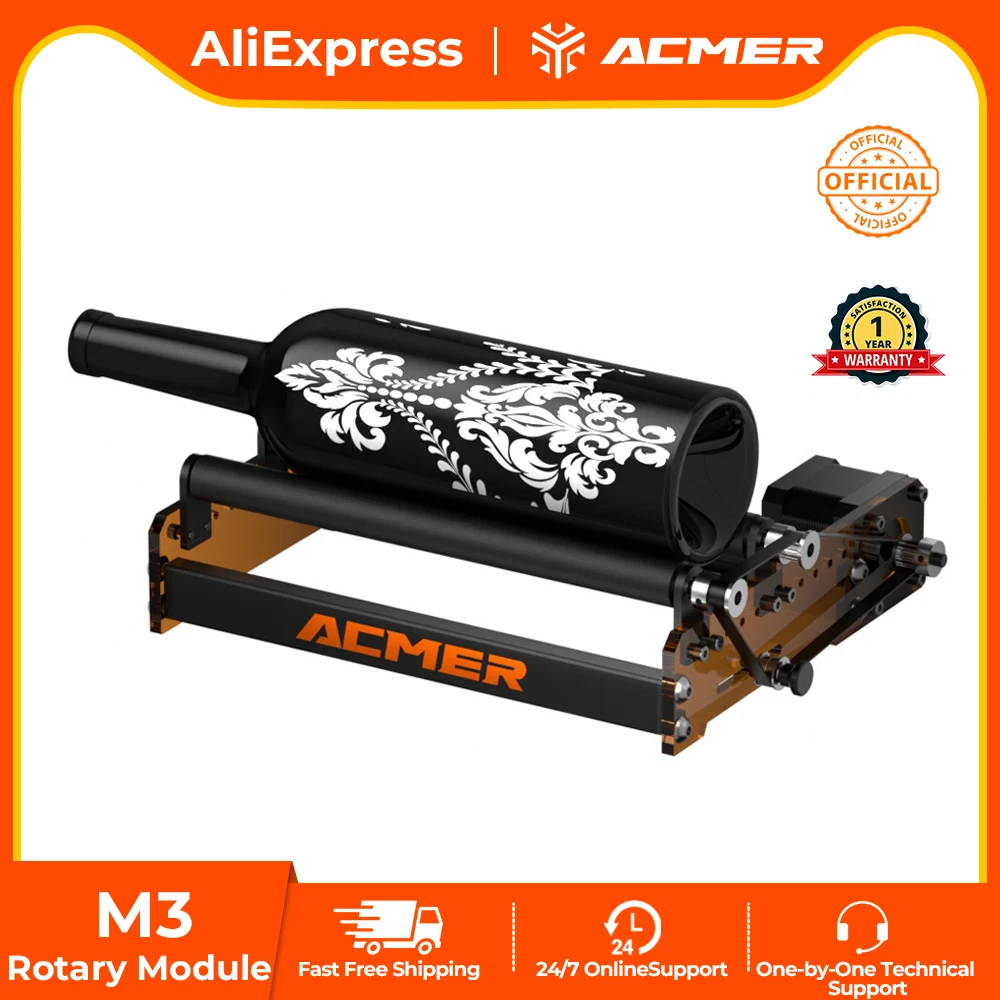

ACMER M3 Laser Rotary Roller 360° Rotating Y-axis Rotary Roller For Laser Cutting Machines Engraving Cylindrical Objects Cans

1. Compatible with 95% of laser engraving machines on the market1. engraving range: 6mm ≤ D ≤ 164mm
2. diameter can be divided into 8 adjustment levels, carving diameter can be as small as 6mm.
3. one-piece rubber roller, hardness up to 60A, stronger friction, more stable carving process.
4. carving: long cylinder, small diameter cylinder, conical rule objects
5.100% compatible with Lightburn and Laser GRBL

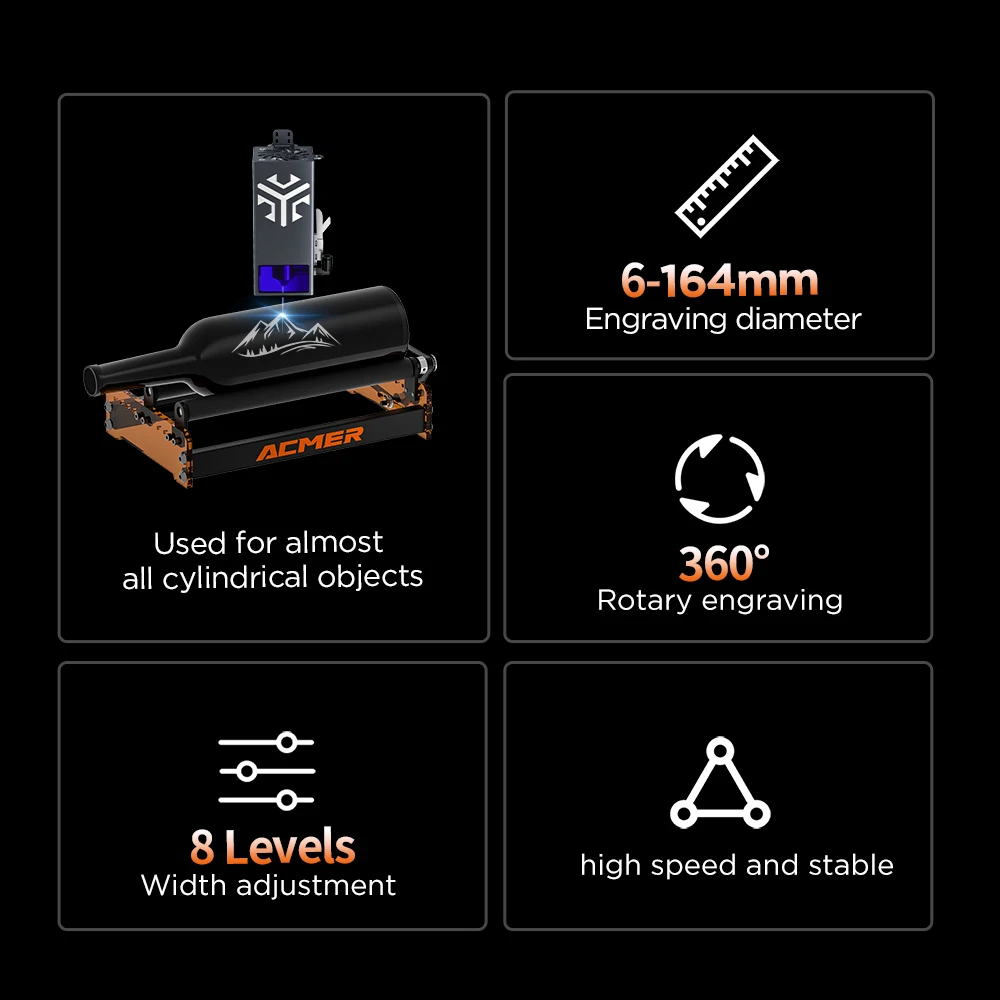

ACMER M3 ROTARY ROLLER

Used for almost all cylindrical objects
✨6-164mm Engraving diameter
✨360° Rotary engraving
✨8 Levels Width adjustment
✨high speed and stable

High-Quality Stepper Motor

To address the issue of high-speed stability, we have seamless rolling during 360° rotational engraving. incorporated high-quality 28-step motors that provide

Superior structural design

After multiple research and development verifications, it has been determined that using a thicker coated roller material can better withstand the weight of the engraved objects, resulting in improved stability and reduced likelihood of slipping.

Humanized design, Easier belt adjustment

The tension of the belt affects the engraving accuracy, and a user-friendly design makes belt adjustment simpler. By rotating it clockwise or counterclockwise, the belt tension can be easily adjusted. A properly tensioned belt ensures greater stability during the engraving process.

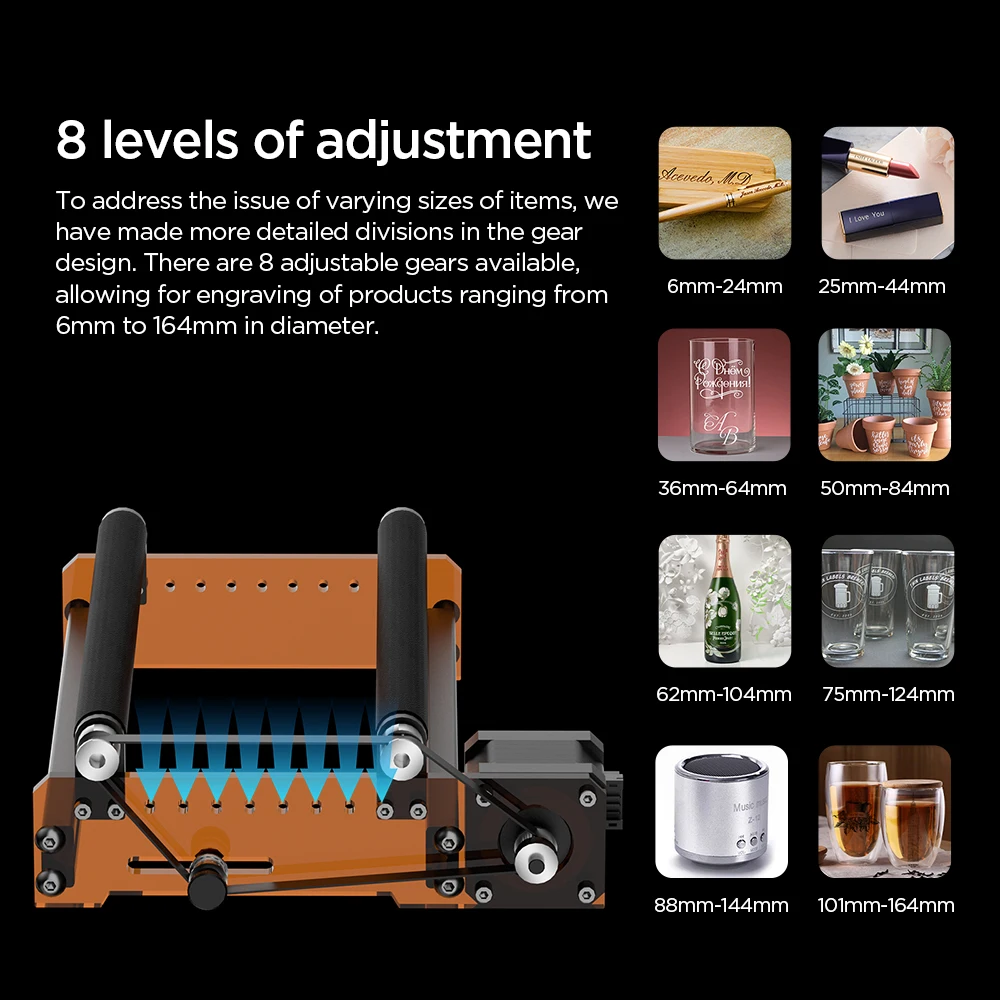

8 levels of adjustment

To address the issue of varying sizes of items, we have made more detailed divisions in the gear design. There are 8 adjustable gears available, allowing for engraving of products ranging from 6mm to 164mm in diameter.

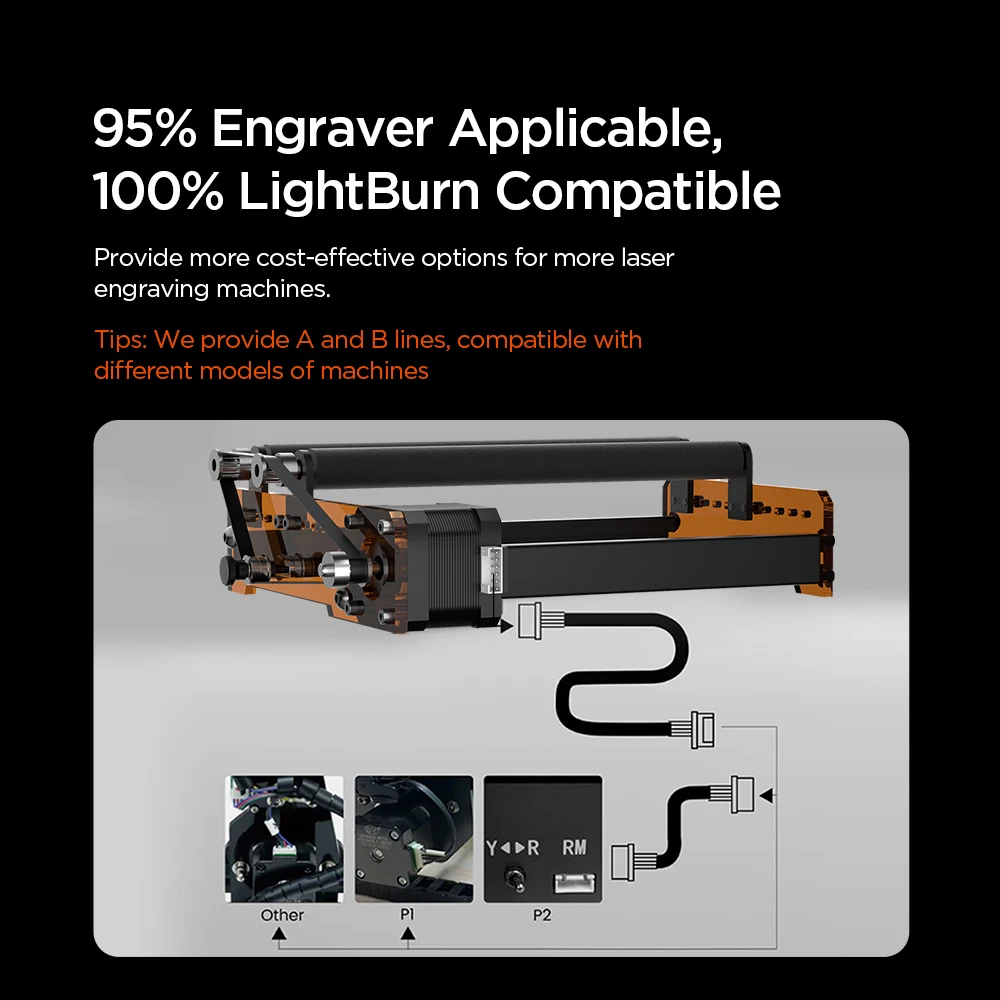

95% Engraver Applicable, 100% LightBurn Compatible

Provide more cost-effective options for more laser engraving machines.

Tips: We provide A and B lines, compatible with different models of machines

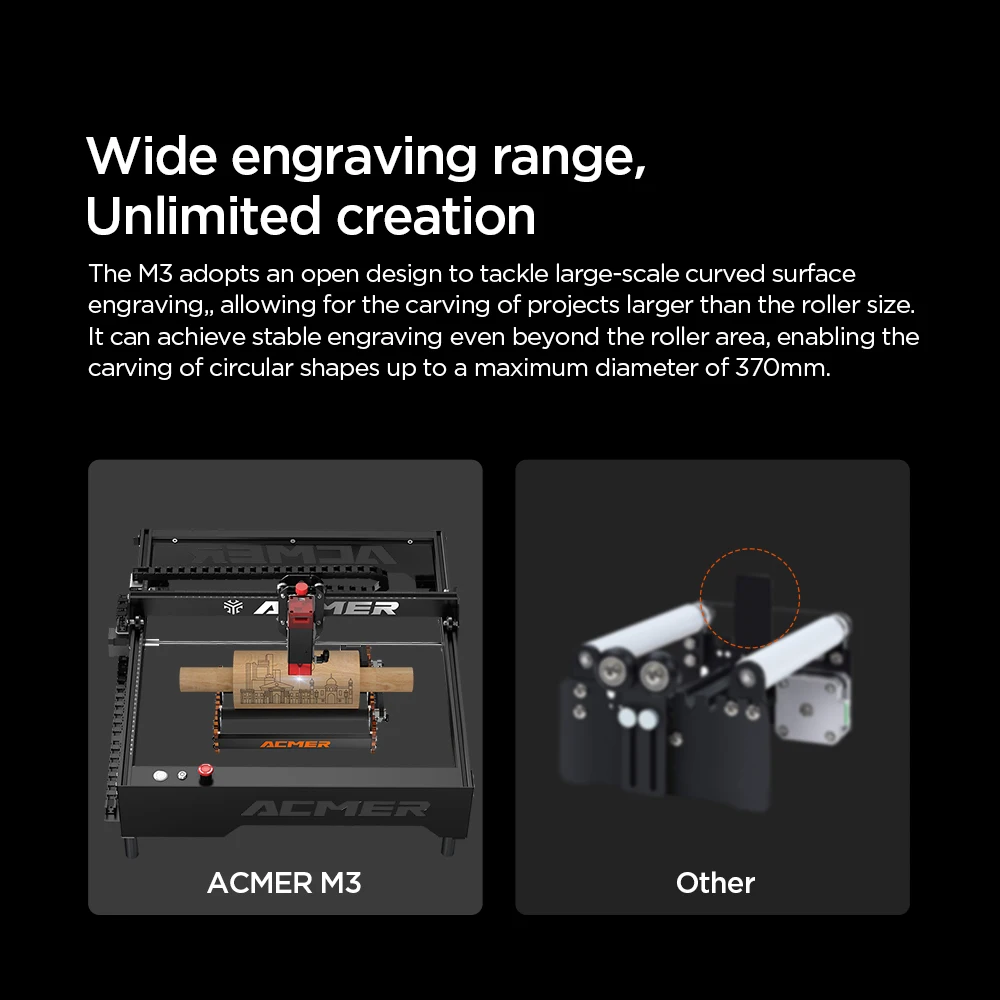

Wide engraving range, Unlimited creation

The M3 adopts an open design to tackle large-scale curved surface engraving,, allowing for the carving of projects larger than the roller size. It can achieve stable engraving even beyond the roller area, enabling the carving of circular shapes up to a maximum diameter of 370mm.

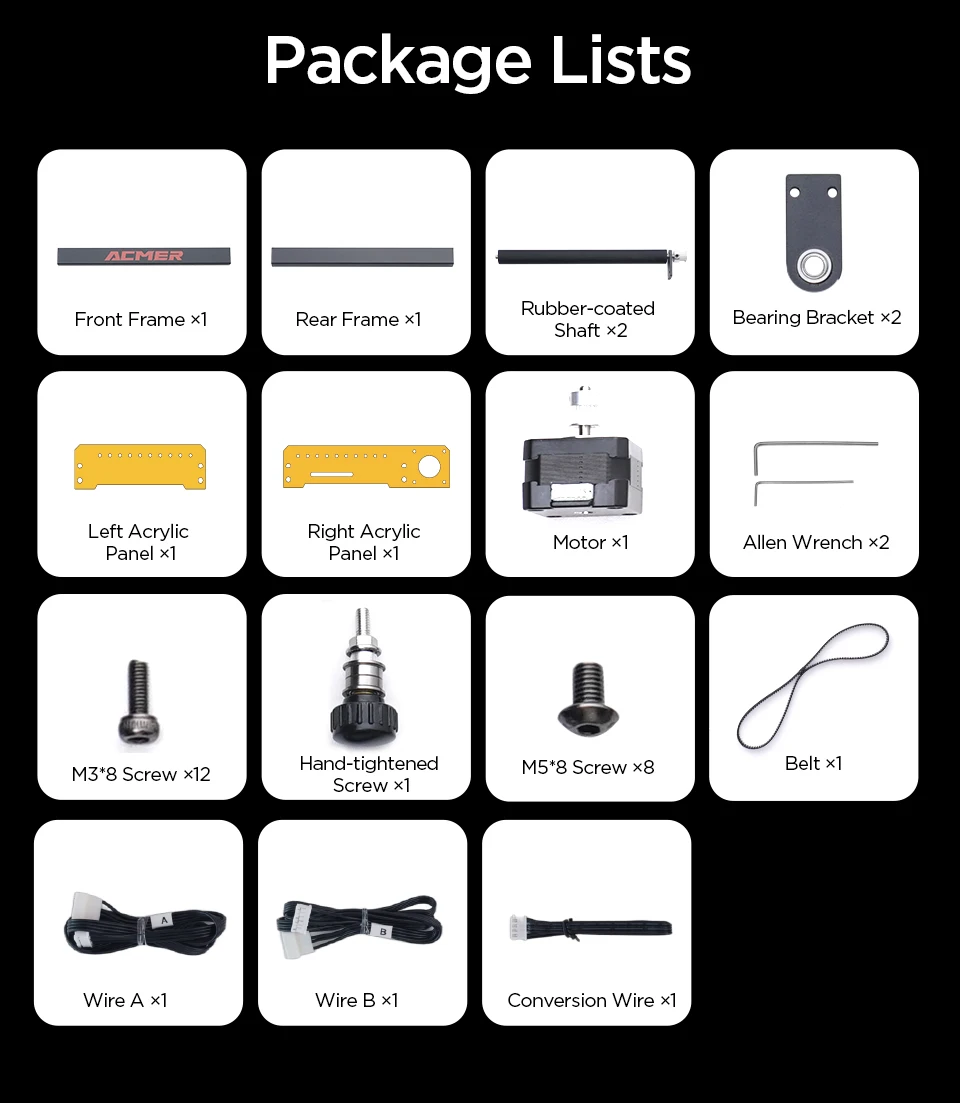

Package Lists

ACMER Front Frame ×1
Rear Frame ×1
Rubber-coated Shaft ×2
Bearing Bracket ×2
Left Acrylic Panel ×1
Right Acrylic Panel ×1
Motor ×1
Allen Wrench ×2
M3*8 Screw ×12
Hand-tightened Screw ×1
M5*8 Screw ×8
Belt ×1 Wire A ×1
Wire B ×1
Conversion Wire ×1

Supporting Multiple Software And APP

You can start engraving with your favorite laser software. Windows, macOS, linux iOS, android all platforms covered!

F A Q

Q1. What does "95% compatible with 95% of laser engraving machines" mean?

A: The ACMER M3 rotary module is equipped with an A/B connection cable for most diode laser engraving machines.

Q2. What is the engraving range of the ACMER M4?

A: It supports cylindrical objects with diameters (D) between 6 mm (minimum) and 164 mm (maximum)

Q3. Does compatibility include CO2 or fiber laser devices?

A: No, the module is optimized for diode laser engravers. CO2/fiber lasers may require specialized rotary attachments.
